Solid Liquid Separation Centrifuge Sedimentation Centrifuge Machine
Product Application

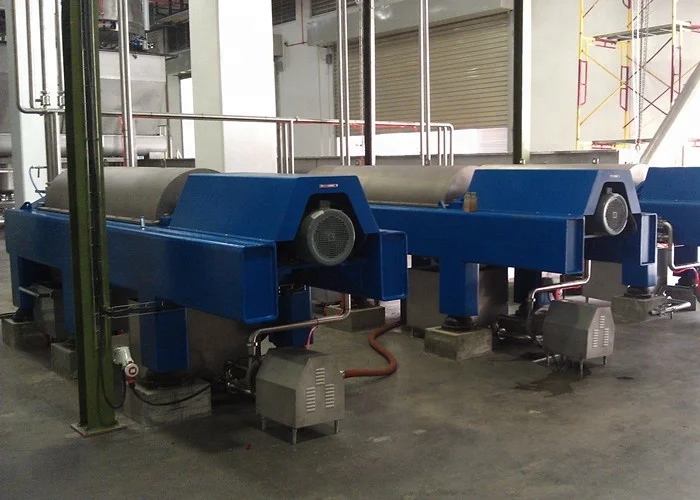

The decanter centrifuge is a mechanical equipment that utilizes the principle of centrifugal force and sedimentation to continuously separate suspended liquids with density differences. Our centrifuges can clarify, dehydrate, and classify suspensions with 0.002-3 mm solid-phase particles and thickness ranging from 0.5% to 40%.
Our product line includes two structural types: LW-counter-current and parallel-current models. Based on feed characteristics, we offer LW two-phase separators and LWS three-phase separators, suitable for various industrial applications including pharmaceutical, food, chemical, light industry, and environmental protection sectors.
Technical Specifications
| Model | Drum diameter (mm) | Inlet liquid capacity (㎥/h) | Power of main/auxiliary motor (Kw) | Weight (Kg) | Dimension (max) (mm) |
|---|
| LW250 | 250 | 1-4 | 11/4 | 1200 | 2650×720×900 |
| LW(F)250 | 250 | 1-4 | 11/4 | 1200 | 2650×720×900 |
| LW250(W) | 250 | 1~5 | 11/4 | 1300 | 2750×720×900 |
| LW350 | 350 | 5~15 | 22/5.5 | 2000 | 3585×980×1238 |
| LW(F)350 | 350 | 5~15 | 22/5.5 | 2000 | 3585×980×1238 |
| LW350(W) | 350 | 5~18 | 15/5.5 | 2200 | 3412×1090×950 |
| LW(S)350 | 350 | 2~10 | 22/5.5 | 2000 | 3676×980×1238 |
| LW450 | 450 | 5~20 | 30/11 | 3000 | 4380×1080×1360 |
| LW(F)450 | 450 | 5~20 | 30/11 | 3000 | 4380×1080×1360 |
| LW450(W) | 450 | 5~28 | 30/11 | 3200 | 4380×1080×1360 |
| LW(S)450 | 450 | 5~15 | 37/11 | 3200 | 4195×1080×1360 |
| LW520 | 520 | 10~26 | 45/15 | 5000 | 4840×1160×1465 |
| LW(F)520 | 520 | 10~26 | 45/15 | 5000 | 4840×1160×1465 |
| LW520(W) | 520 | 10~35 | 16742 | 5000 | 4840×1160×1465 |
| LW550W | 550 | 10-45 | 20394 | 6500 | 5038×1388×1578 |
| LW650A | 650 | 7-9T | 110 | 8000 | 4407×2280×1340 |
| LW650(W) | 650 | 25-60 | 75/22 | 8000 | 5500×2280×1340 |
| LW720A | 720 | 8-10T | 132/160 | 11000 | 4410×3280×1450 |
| LW720(W) | 720 | 35-85 | 110/30 | 13000 | 5600×3280×1450 |
* F: Ex-proof, W: Waste water, S: Three phase, FS: Ex-proof and three phase
Main Features
- All product-contact parts made of stainless steel
- 3-phase AC motor with controlled torque starting via frequency converter
- 80-90% oil recovery rate
- Continuous automatic operation reduces personnel costs
- High g-force for superior solids output
- Adjustable bowl speed via VFD
- Automatic differential speed adjustment via VFD
- Dual motor drive system
- Belt drives for both primary and secondary motors
Key Advantages
- Lower cake transportation costs due to very dry solids output
- Superior nutrient recovery with high separation efficiency
- Reduced fresh water consumption compared to alternative processes
- Continuous fully automatic operation
- 24-hour operating reliability
- Optimized wear protection for extended service life
- Energy-efficient design
- User-friendly operation and maintenance
- Simple assembly and disassembly procedures
Industrial Applications
- Starch washing and dehydration
- Soybean and wheat protein dehydration
- Fish meal and fish processing
- Brewers' grains dehydration
- Juice purification and fruit fiber dehydration
- Animal and vegetable oil separation and purification
- Coal tar separation
- Gypsum clarification and purification
- Starch classification and dehydration
- Kaolin and graphite processing
- Dyes and pigments classification
- Mineral thick liquid processing
Manufacturer Information
| Product Name | Manufacturer |
|---|
| Separator | Jiangsu Juneng Machinery Co.,Ltd (South) |
| Centrifuge | Juneng Machinery (China) Co.,Ltd (Nanjing) |
| Filter | Jiangsu Juneng Machinery Co.,Ltd (North) |
| Dryer | Juneng Machinery (China) Co.,Ltd (Nanjing) |
| Pump | Jiangsu Juneng Machinery Co.,Ltd (South) |

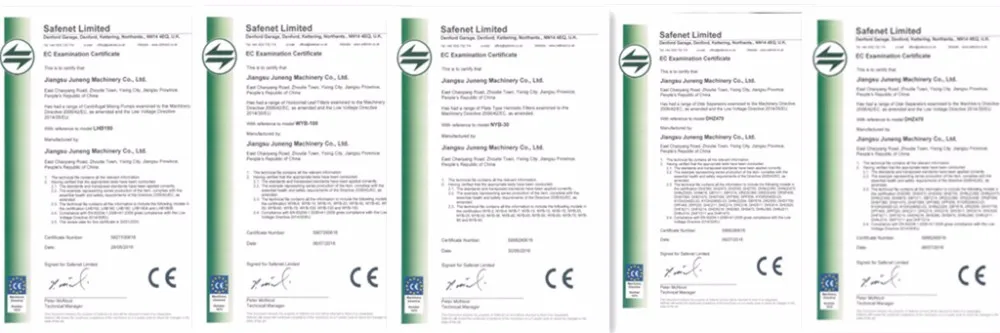

Certifications
Service & Support
Pre-Sales Service
- Inquiry and consulting support
- Sample testing assistance
- Factory visit arrangements

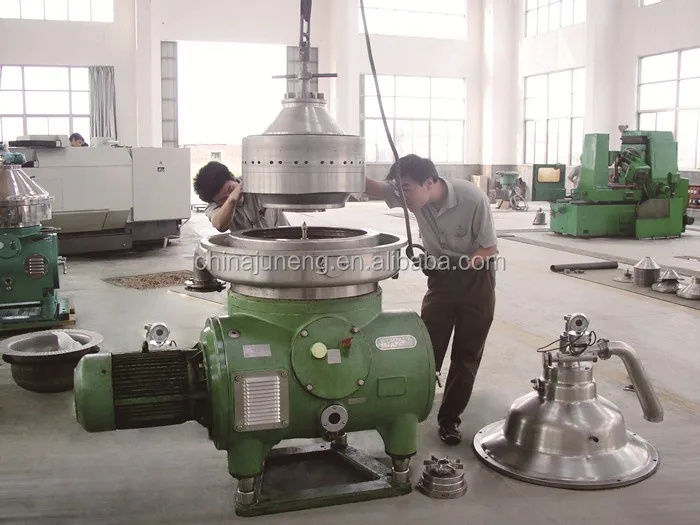

After-Sales Service
- Installation and operation training
- Overseas engineer support
- Maintenance and repair services
Packaging & Delivery
| Size | 123 (L) × 456 (W) × 789 (D) |
|---|
| Weight | 1.2 T |
|---|
| Packaging Details | Standard wooden box packaging (Size: L×W×H). European exports include fumigated wooden boxes. Alternative packaging options available for tight container spaces or special customer requirements. |
|---|
Related Products

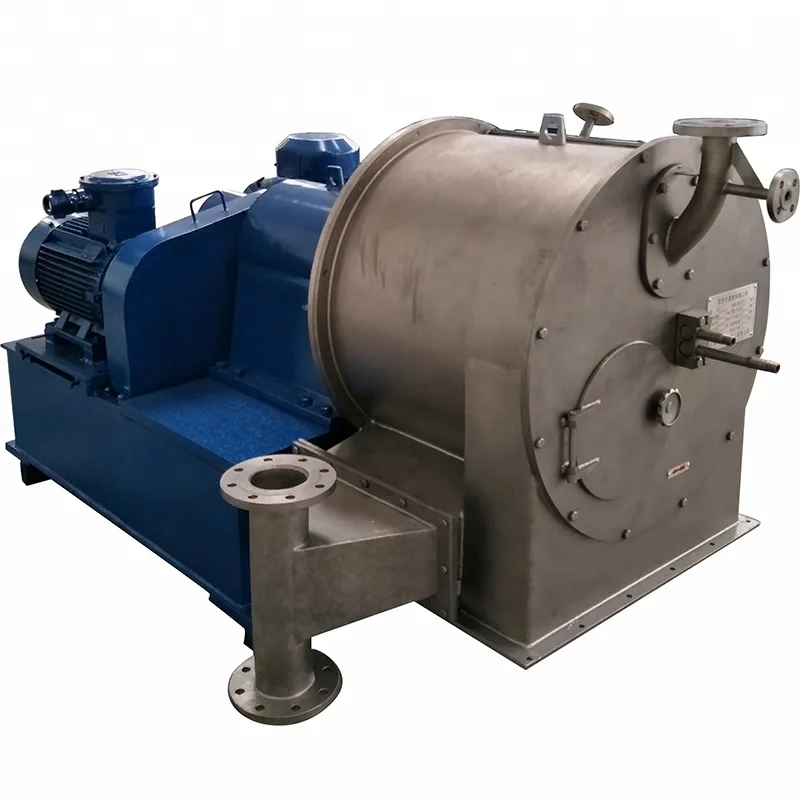

Pusher centrifuge - 91.8% Response Rate
Mixing pump - 91.8% Response Rate

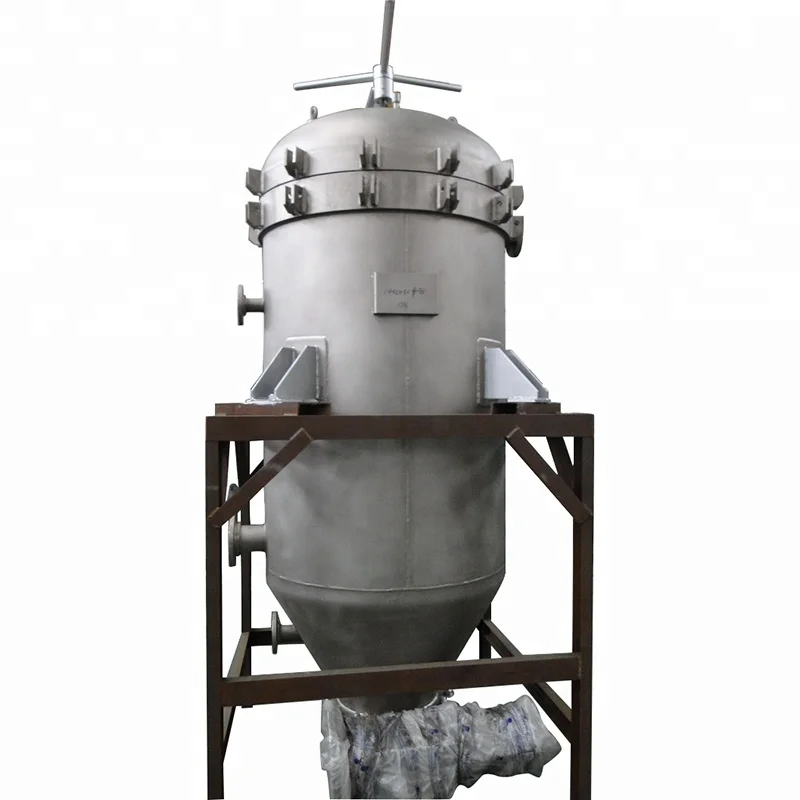

Solid liquid filter - 91.8% Response Rate
